Logical Branch - Active Agents

Logical Branch - Active Agents

Overview

After a conversation enters a queue, using a Logical Branch step, you can route the conversation based on the number of Agents that are active on that queue at the moment that the conversations happening.
Please note that the system is count is based on all the current, parent, and child organization roles that are logged in and have access to the queue at the moment the conversation is happening.

How It Works

To route the conversation based on the number of Active Agents on the queue:

  1. Make sure, when configuring the queue, that you grant access only to the organizations and roles you need.
  2. Move the conversation to a queue.
  3. Build the logical branch step and branch to the Active Agents field.
  4. Design the paths of your conversation based on your Organizations needs.

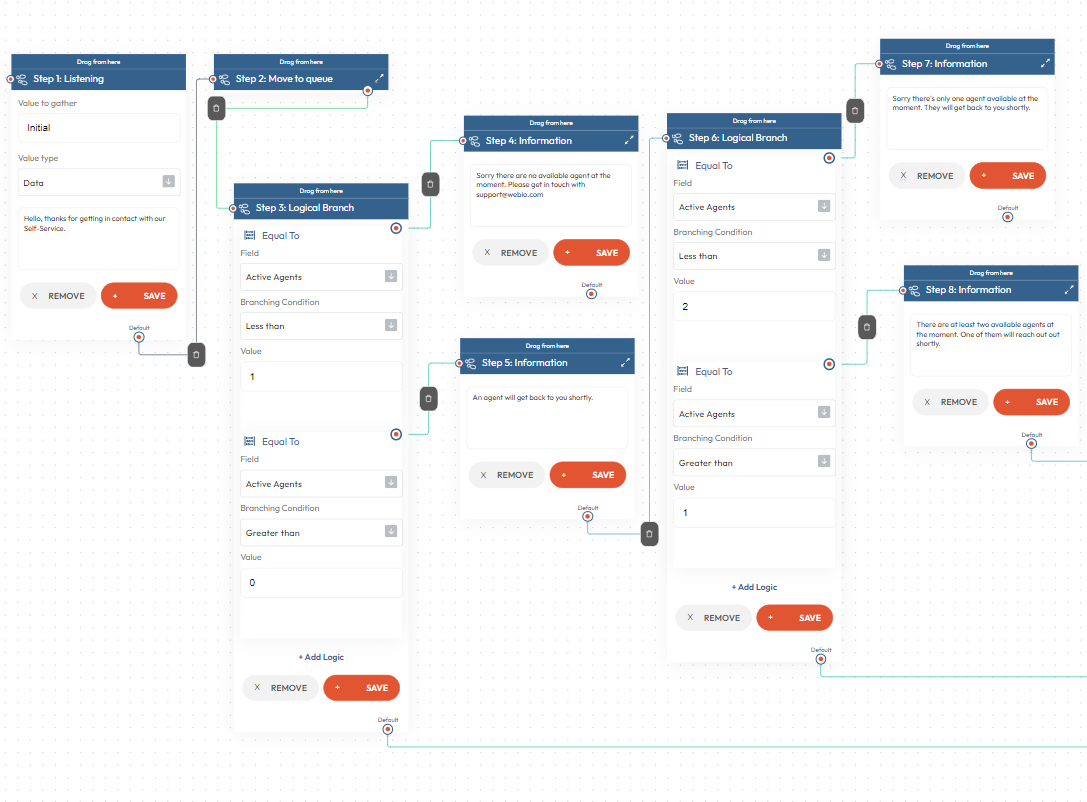

New Web App - Bot Using Active Agent Feature Example

Please note that currently:

On the new Web App - Active Agents feature works with:
  1. Less than
  2. Greater than
On the old Web App - Active Agents features works with:
  1. Less than
  2. Greater than
  3. Less than or equal to
  4. Greater than or equal to
Check the same kind of logical configuration but on our old Web App
Old Web App - Logical Branch Step Configuration Example
Old Web App - Logical Branch Step Configuration Example
